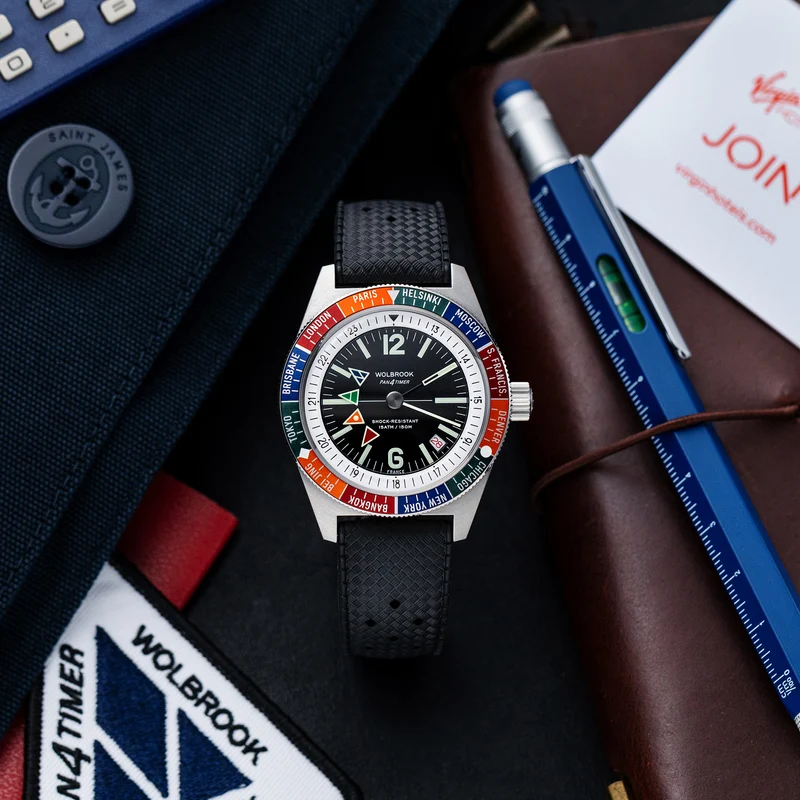

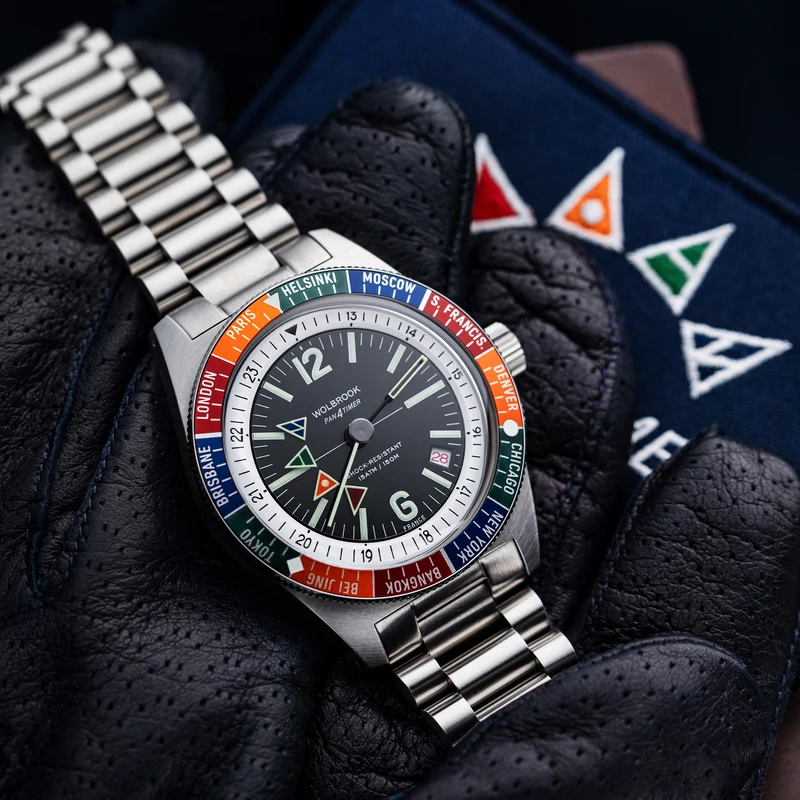

Pan4Timer Automatic

Inspired by the iconic Skindiver WT design, the Pan4Timer® Automatic watch features a multi-layer dial with a four-arrow hour disk for tracking four consecutive time zones, paired with a rotating bezel displaying shape- and color-coded city markers for instant regional alignment. It includes a glass box sapphire crystal, a 316L stainless steel Skindiver® case with HexapleX® architecture, and a screw-down crown — water-resistant to 150 m.

This innovative automatic watch — powered by the Japanese Citizen/Miyota 8315 automatic movement with a 60-hour power reserve (approx.) — is presented on a choice of 3-links steel bracelet, black or orange "Tropic" rubber strap, or a two-piece camel rally leather strap.

SPECIFICATIONS

Specifications of the Pan4Timer Automatic Watch, Black Dial with C3 Super-LumiNova® and Steel Case

• Functions:
  • 4 consecutive time-zone display
  • Hours / Minutes / Seconds / Date
  • 60 min / sec timing and world-city time-zone alignment via rotating bezel
• Hands and dial:
  • Date disk between 4h30 o'clock

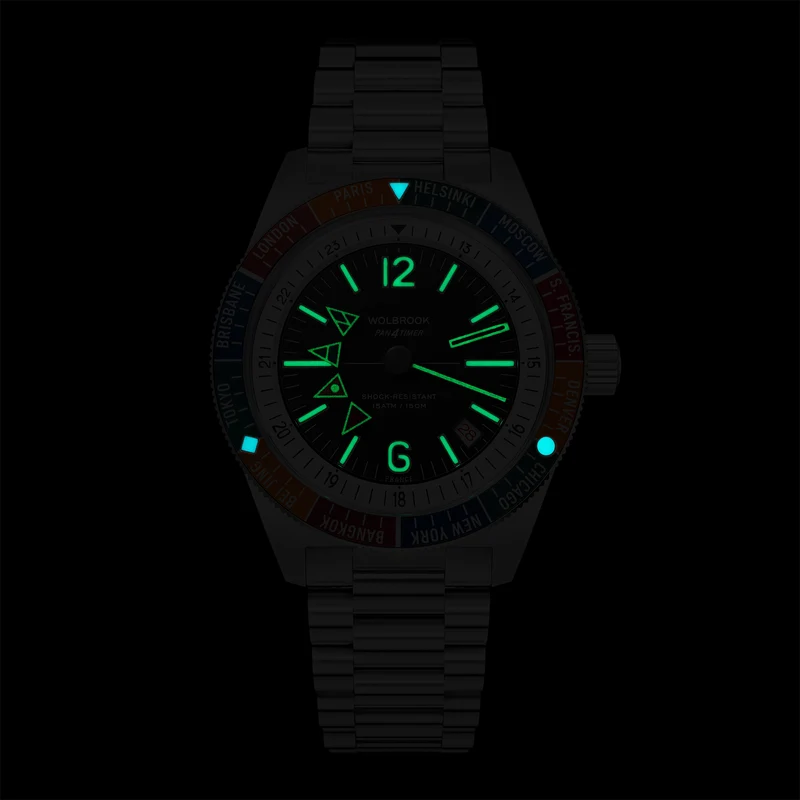

  • C3 Super-LumiNova® on all hands and indices
  • Glossy black minutes & seconds hands
  • 4 Hours Hands - Red, Orange, Green & Blue
  • Framing the dial is a 24-hour scale that complements the hour disk and reinforces the time-zone reading logic.
• Bezel:
  • 120 clicks
  • Unidirectional rotatable
  • 316L stainless steel
  • Dark blue, dark green, orange and red bezel
• Case:
  • HexapleX® shock-resistant architecture
    • The movement is shielded with rubber shock-absorbers in a “floating” configuration and effectively protected from micro to big impacts on the watch.
    • HexapleX® seashell logo is laser engraved on the back of the top right lug and inside of the caseback.
    • Discover more on the: HexapleX® shock-resistant architecture
  • Hand finished brushed 316L stainless steel
  • Screw-down crown

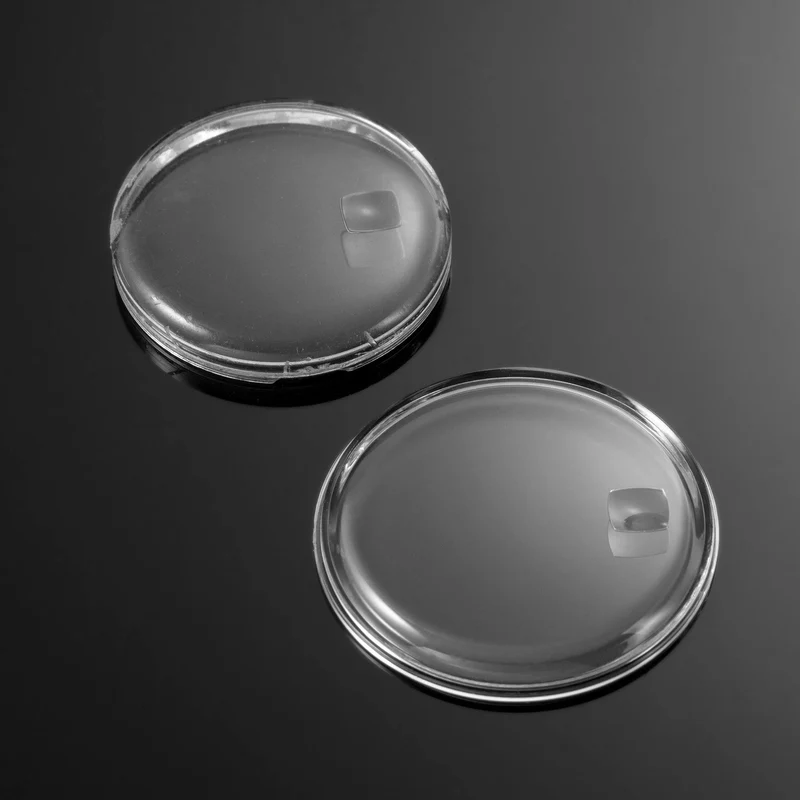

  • Glass box sapphire crystal

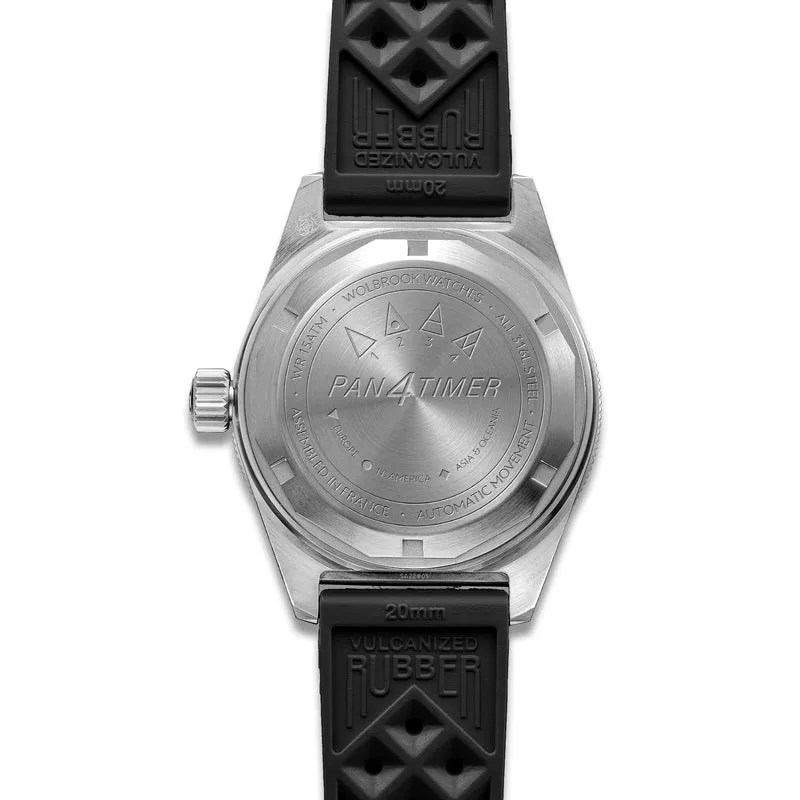

  • Dodecagon shaped screw-down caseback
  • Drilled lugs for easy strap changes
  • Water resistance: 15 ATM / 150 m
• Dimensions:
  • 40 mm diameter x 48 mm lugs to lugs x 13 mm thickness
  • 20 mm lug width
• Assembled in France
• Delivered with a green canvas & leather watch pouch

AUTOMATIC MOVEMENT

The Pan4Timer Automatic is an automatic watch powered by the Citizen / Miyota 8315.

• Citizen / Miyota 8315
  • Functions: hours, minutes, central seconds and hacking-second
  • Power reserve: approximately 60 hours fully wound
  • Winding: Automatic / self-winding & hand-winding
  • Finish: Geneva pattern and blue screws
  • Frequency: 21600 per hour
  • Jewels: 21 pcs
• In-house modifications and operations
  • Modification of the date disk to a “Roulette” style disk - the date display alternates between red (even dates) and black (odd dates) on a white background.
  • Control and setting with a tolerance of ±15 s per day and a beat error of 0.6 ms

TROPIC RUBBER STRAP or 3 LINKS BRACELET or CAMEL RALLY LEATHER STRAP

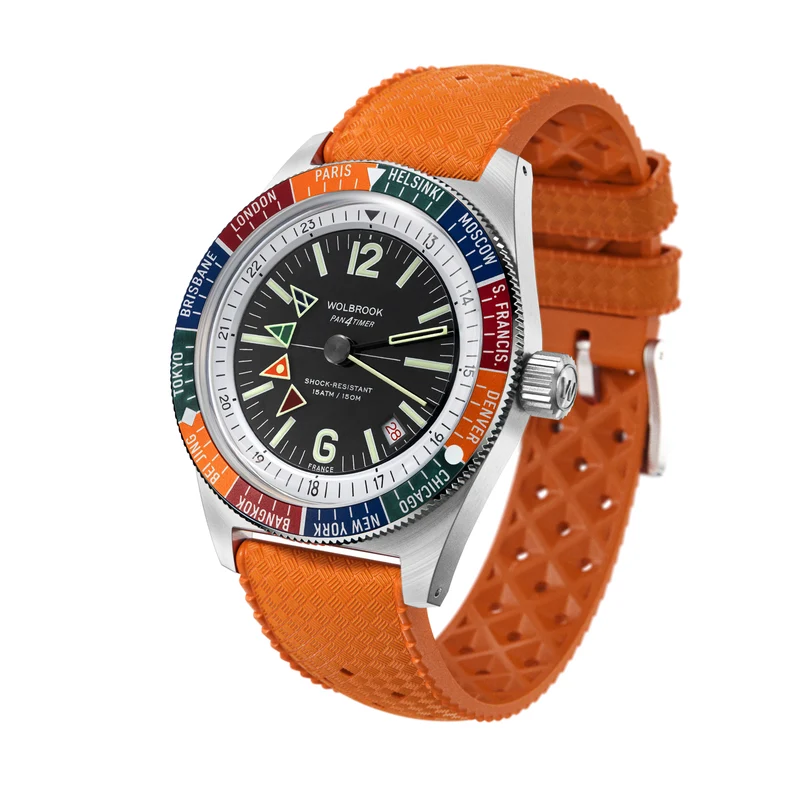

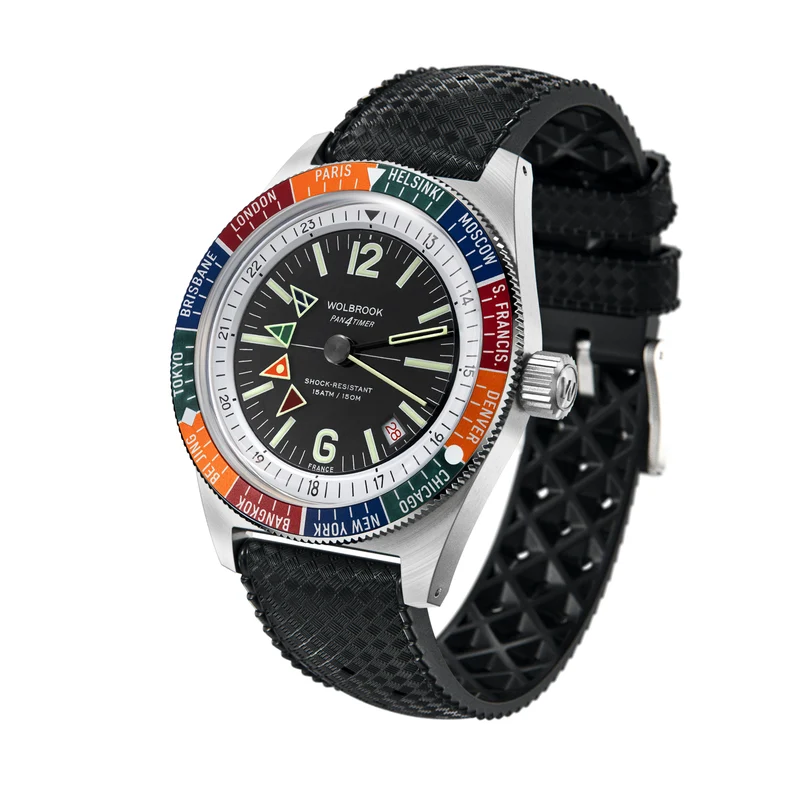

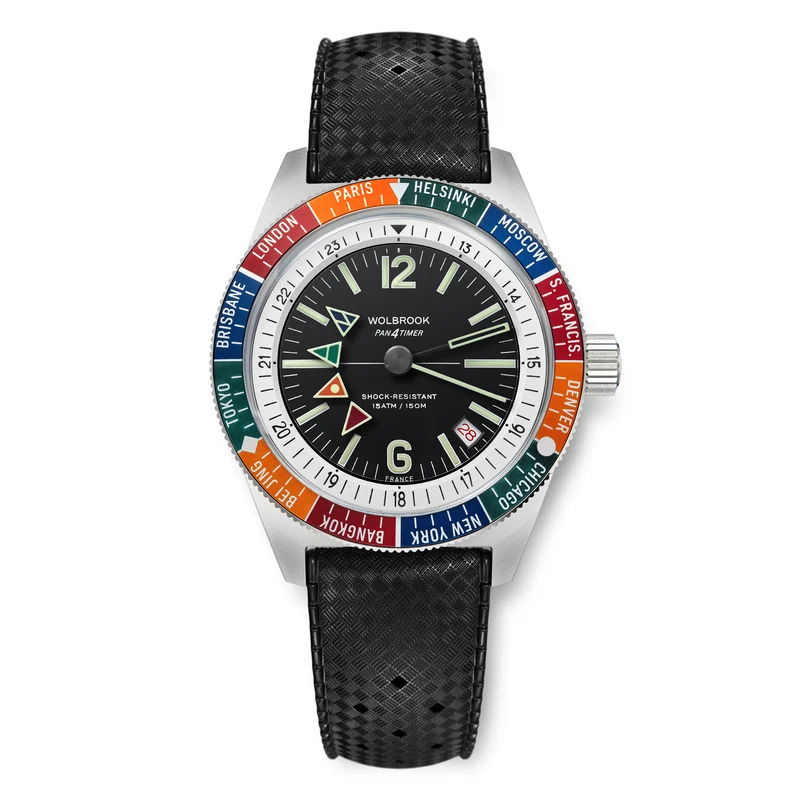

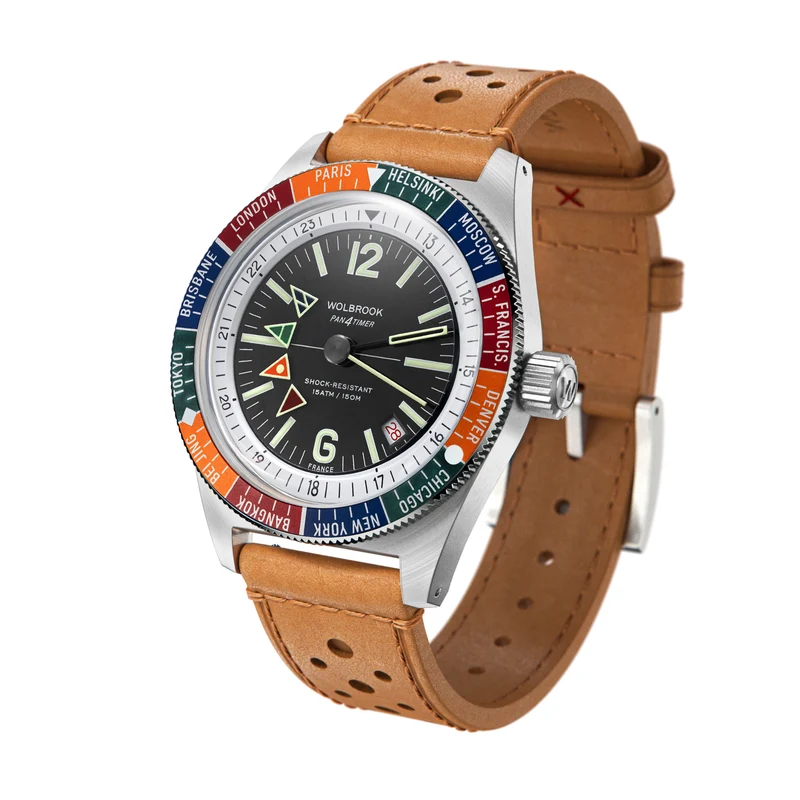

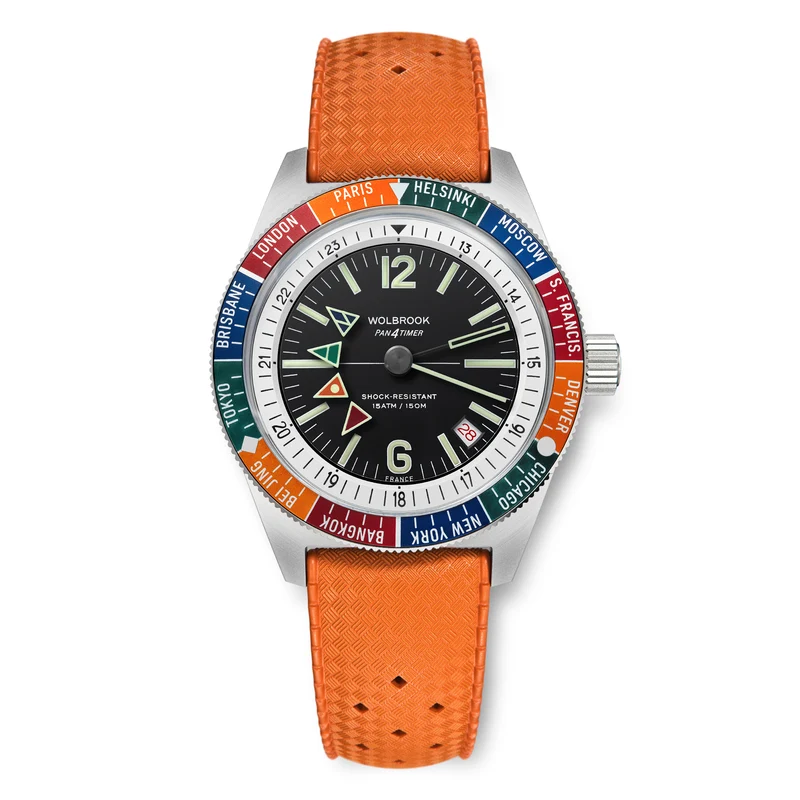

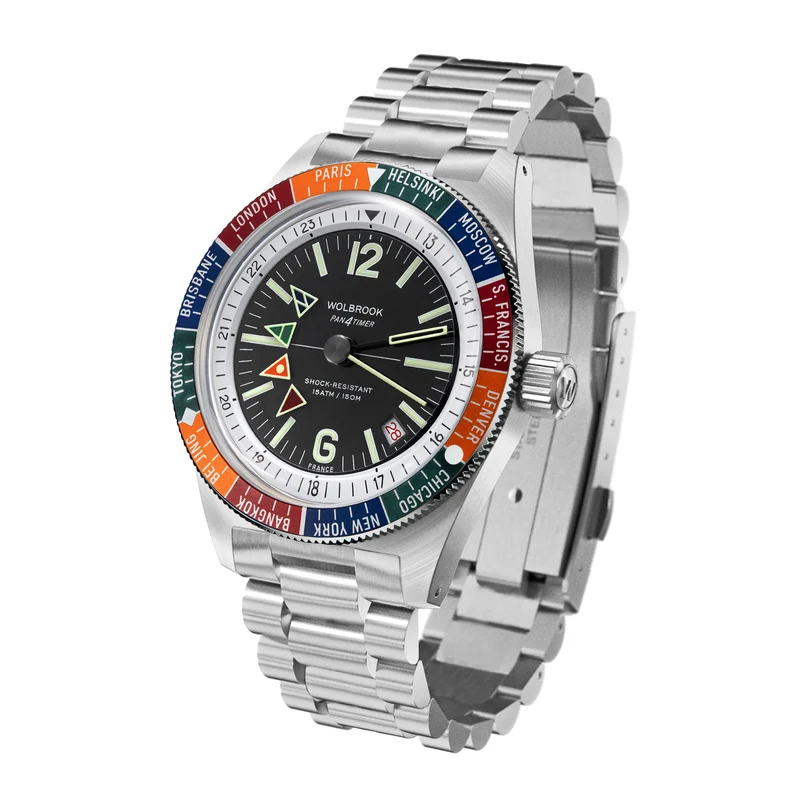

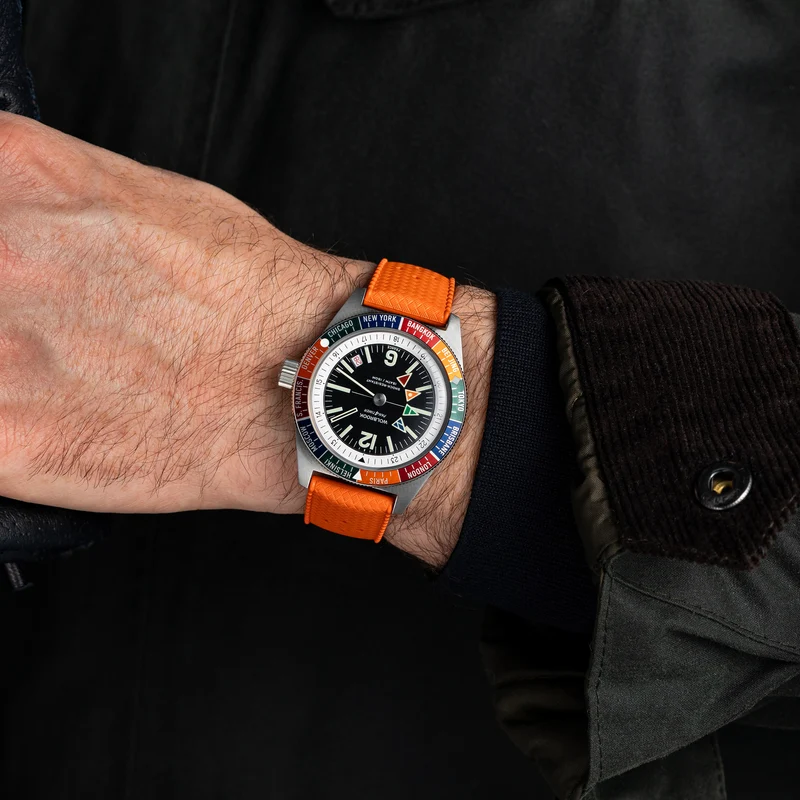

The Pan4Timer Automatic watch - Black & Steel - is equipped with a choice of a black or orange "Tropic" rubber strap, a 316L stainless steel 3-links bracelet, or a two-piece camel rally leather strap.

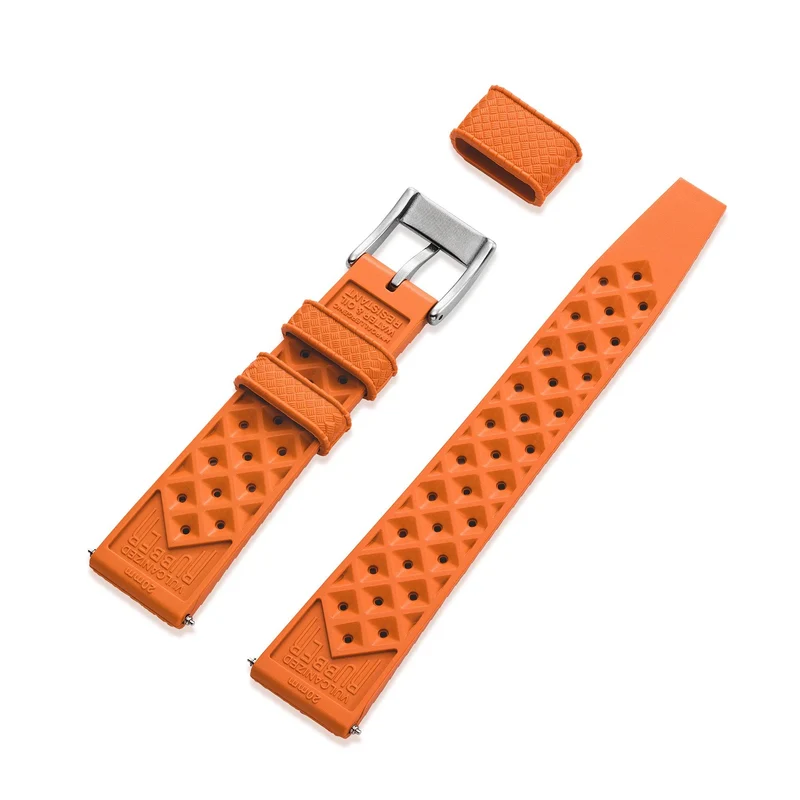

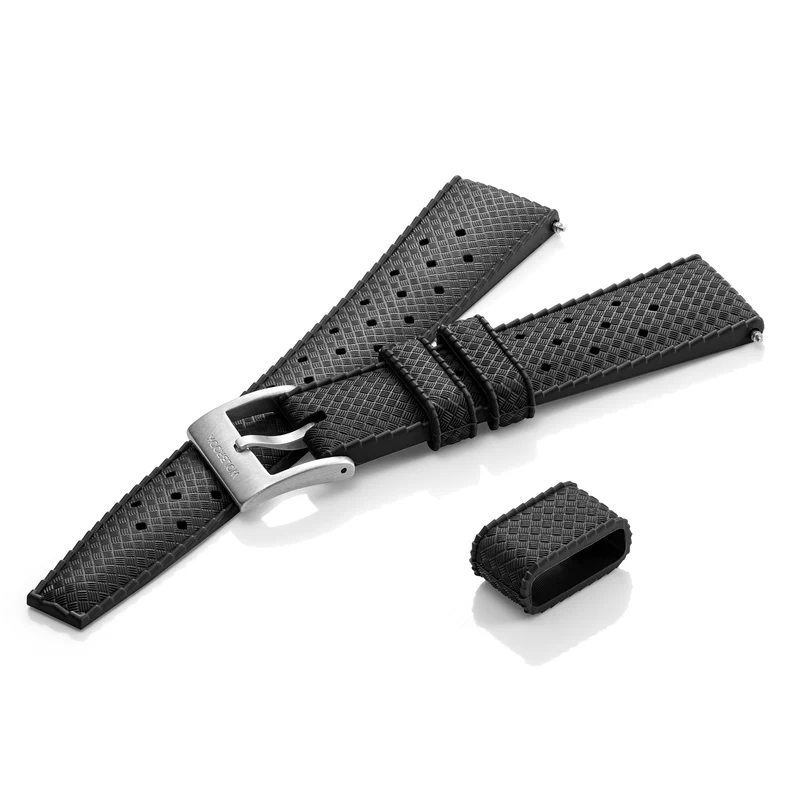

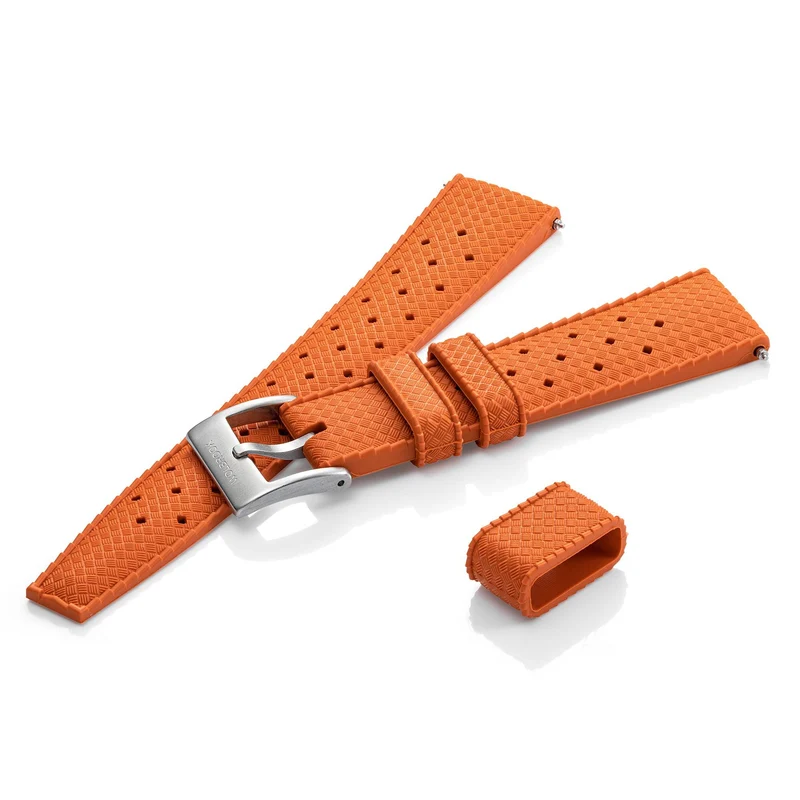

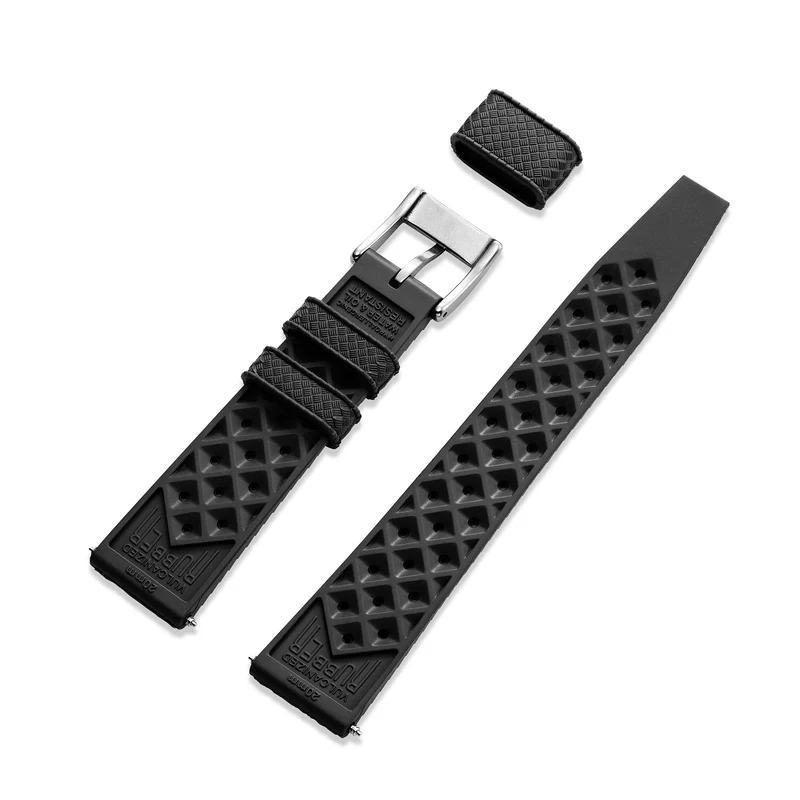

SPECIFICATIONS OF THE "TROPIC" RUBBER STRAP

• Dimensions & Size:
  • Long part length: 120 mm
  • Short part length: 75 mm
  • Lug width: 20 mm
  • Buckle width: 16 mm
• Spring-bars: "Fat" Ø 2 mm
• Material:
  • Oil Resistant - Won't be damaged by lubricant or sunscreen
  • Water-Resistant - Ocean ready
  • NBR Rubber Strap
  • 316L Stainless Steel Buckle
• Color: Black or Orange
• Delivered with 3 loops, you can choose to use either:
  • Two skinny loops of 6 mm
  • One large loop of 12 mm

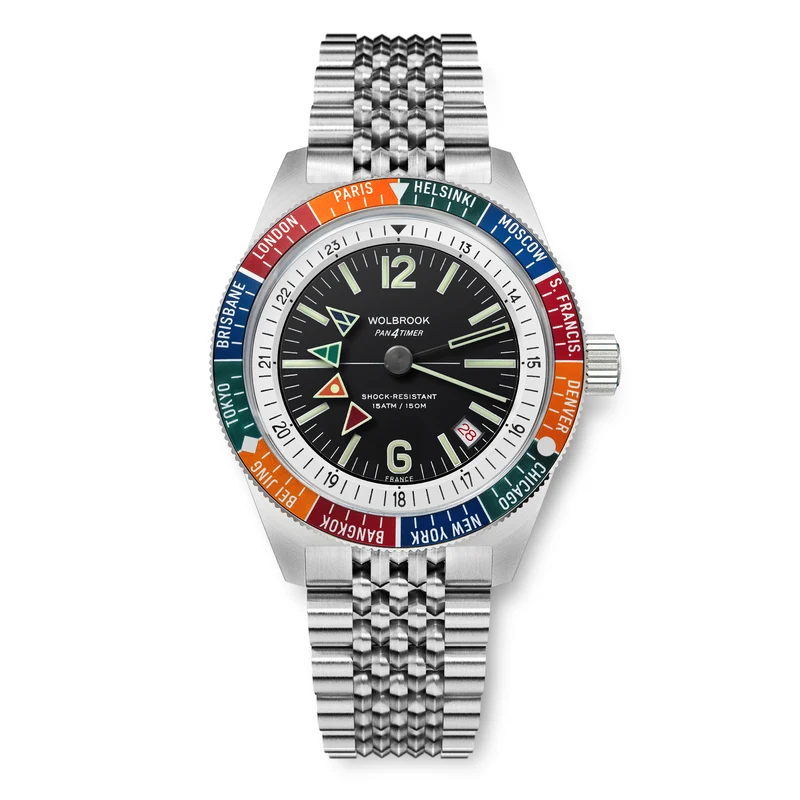

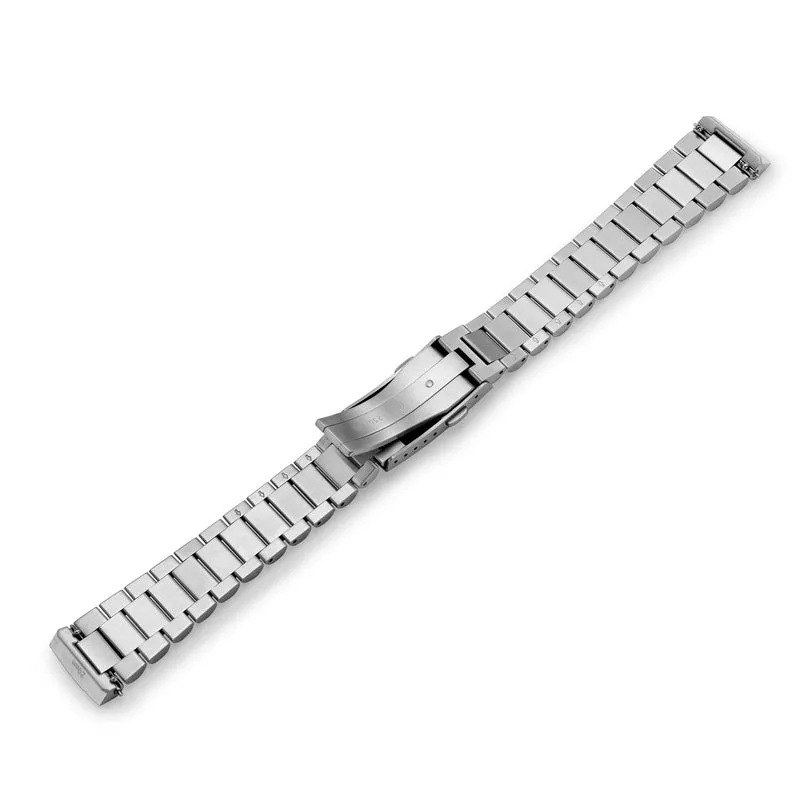

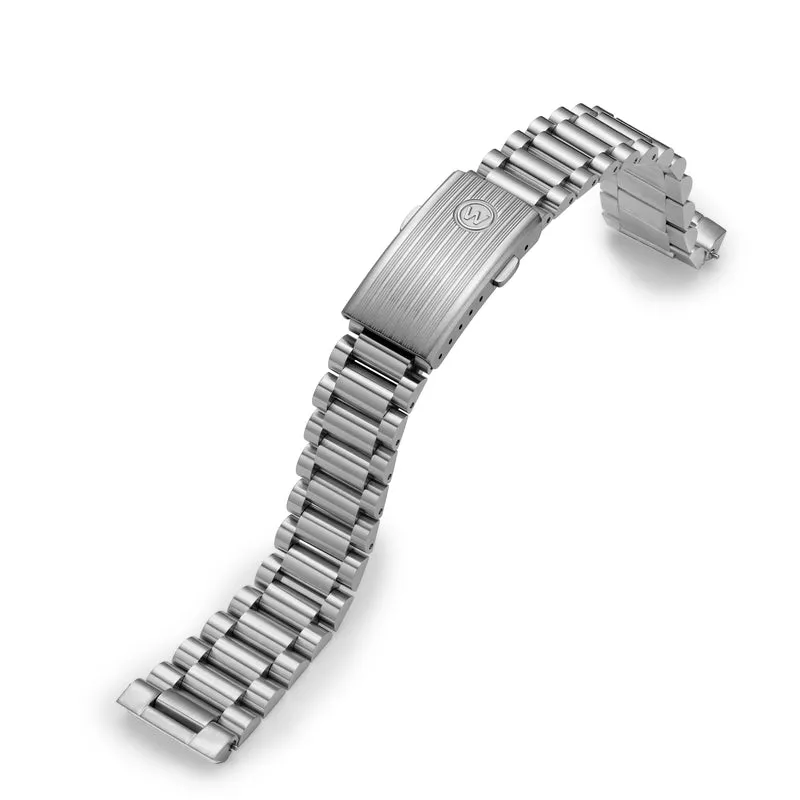

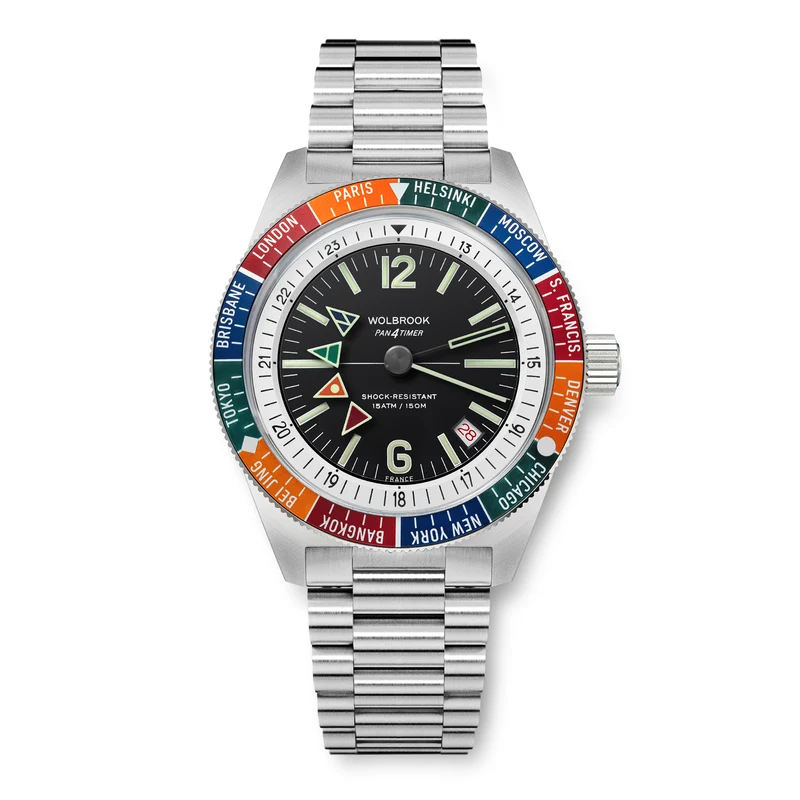

SPECIFICATIONS OF THE STEEL 3-LINKS BRACELET

• Solid 316L stainless steel construction
• Fully brushed finish – machine milled and hand-brushed links
• Quick-release spring bars – fast and easy strap changes
• Solid deployant clasp:
  • Iconic NSA® ribbed design – scratch resistant
  • Double-pusher lock – secure yet easy to operate
  • 5 micro-adjustment positions
• Dimensions & Size:
  • Total length: 21 cm – fits wrists up to 24.5 cm
  • Taper: 20 mm (lugs) to 16 mm (clasp)
  • Clasp dimensions: 17.5 mm wide × 35 mm long
• Compatibility: Fits all Wolbrook tool-watches produced since 2019. Unfortunately, we cannot confirm compatibility with other watch brands.

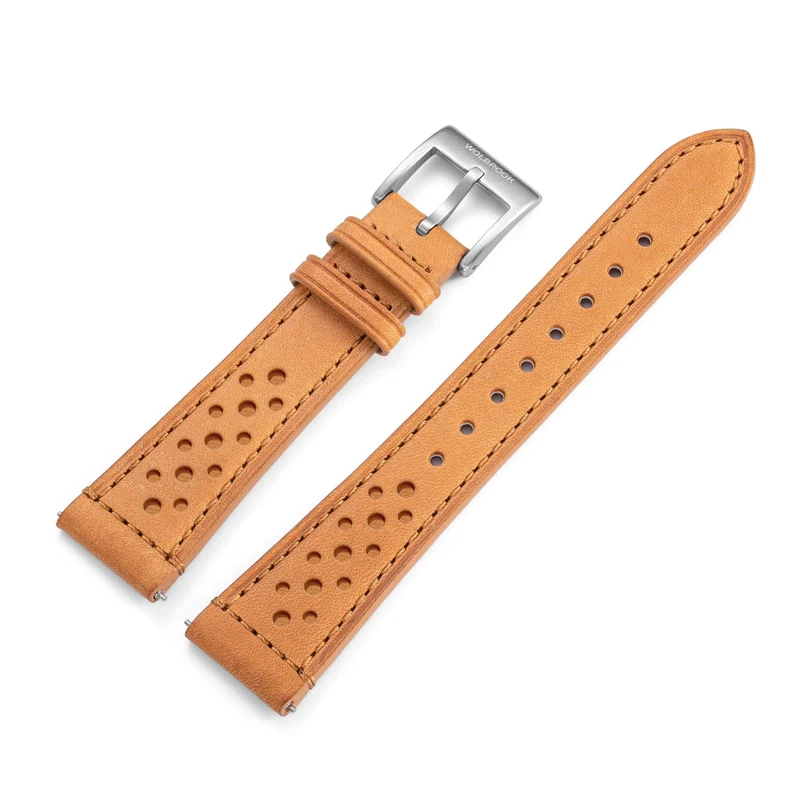

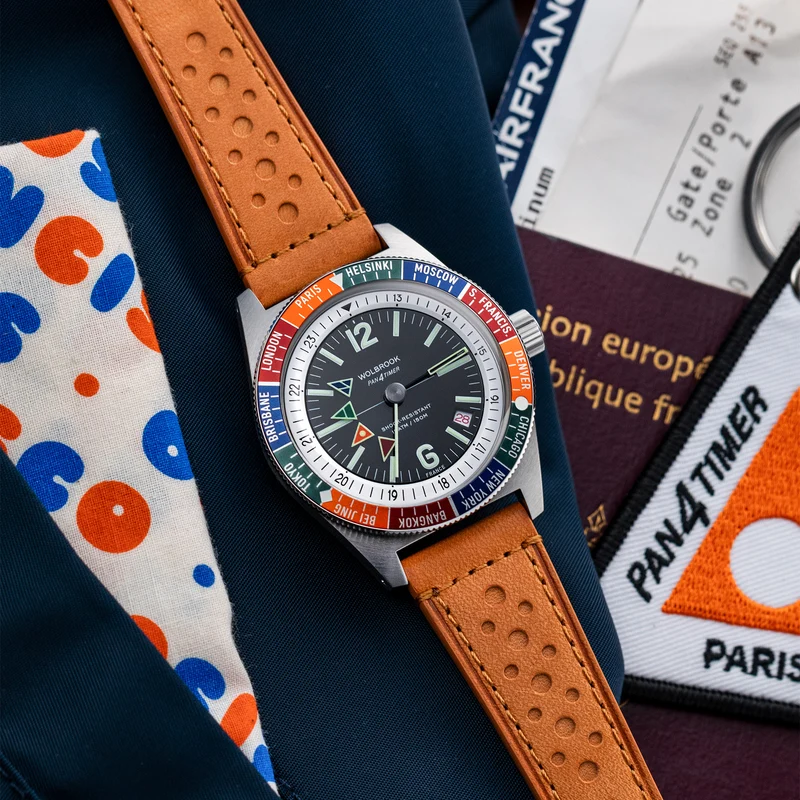

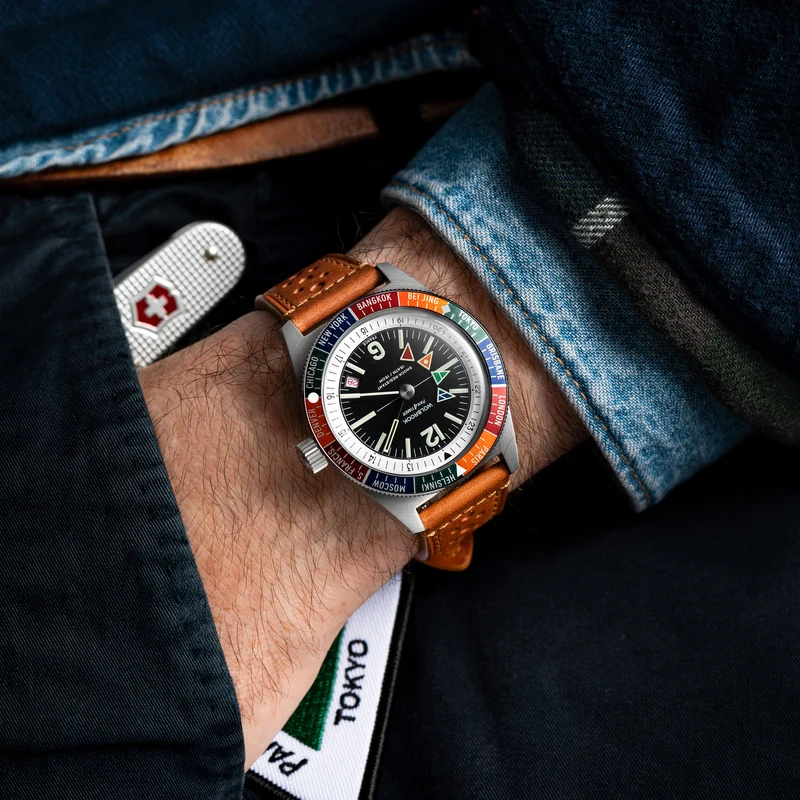

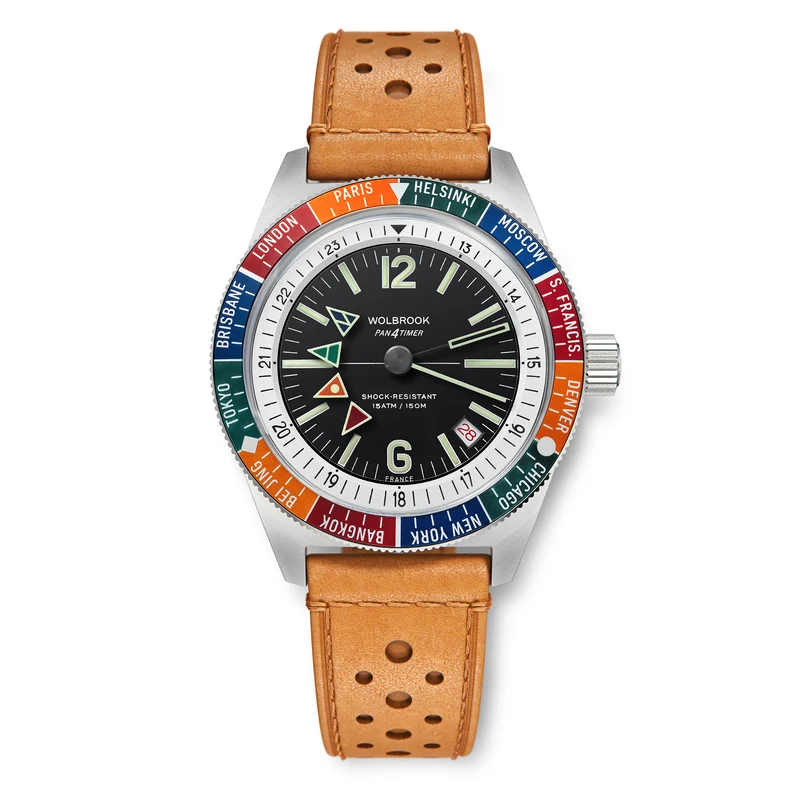

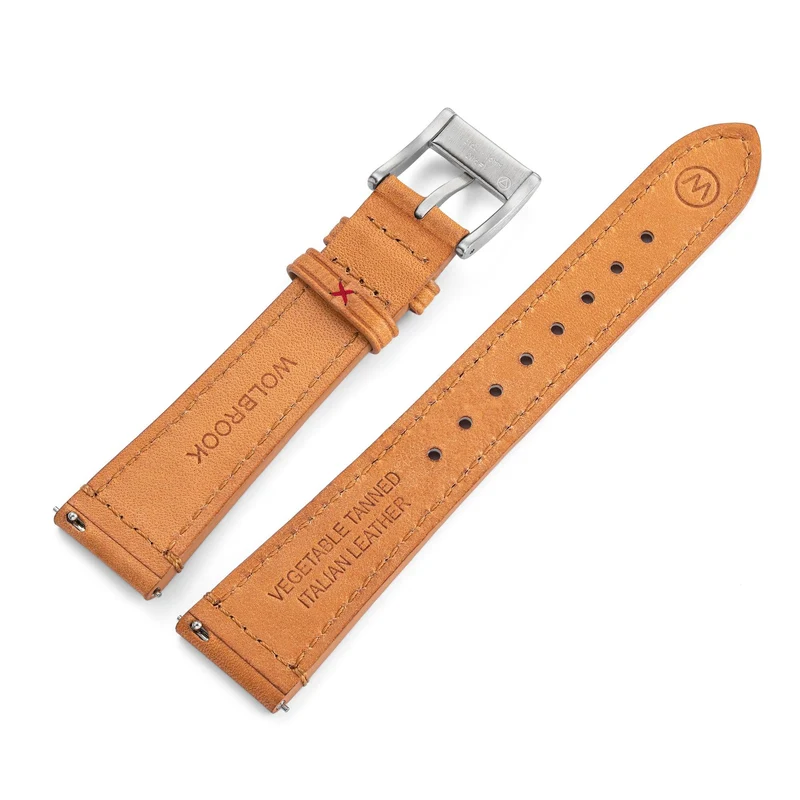

SPECIFICATION OF THE CAMEL RALLY LEATHER BAND WITH STAINLESS STEEL BUCKLE

• Dimensions & Size:
  • Long part length: 120 mm
  • Short part length: 75 mm
  • Lug width: 20 mm
  • Buckle width: 16 mm
• Quick-release spring-bars - Easily swap between straps without tools in a blink of an eye
• Material:
  • Vegetable tanned Italian leather - Better for your skin and the environment
  • Solid stainless steel buckle (316L)
• Construction:
  • Flat double-layered - Both sides of the strap are covered with the same quality leather for extended comfort and smooth feel on the wrist
  • Reinforced stitching around the fixed-loop - Longer durability
  • Hand-stitched - Great attention to details
• Color: Camel
